Leclerc Nilus II Jack Loom 4 Harness Floor Loom

The Nilus II loom has been designed with a stabilizer foot for improved stability. The shed is always clean, regardless of the tie-up combination. The top can be easily removed, allowing easy access to the shafts for the addition or removal of heddles.

It is a loom with independent shafts, guided by pegs at each side, preventing friction on the frames which are pushed upwards by an underneath mechanism.

All Nilus II looms have non-sliding polyvinyl foot pads under the uprights to keep it solid on the floor.

It is equipped with a friction brake giving perfect tension every time.

The front cloth beam and back thread beam are removable for easy threading, and the warp beam is also removable for outside beaming when required.

All looms are equipped with a regular plain beam to which a set of rake-like pieces can be added to convert it into a sectional warp beam.

The Leclerc Nilus II Jack Loom 4 Harness Floor Loom available in weaving widths of 36″, 45″ and 60″

Standard Equipment:

• Steel reed, 12 dents/inch (5 dents/cm)
• 2 lease sticks
• 6 treadles
• 4 warp rods
• Wire heddles
• 2 aprons
• 1 boat shuttle
• 2 cords
• 12 plastic bobbins
• Book: “Warp and Weave”
• 1 reed & heddle hook
• Assembly instructions

Options:

• Leclerc Nilus II Inserted Eye Heddle Upgrade
• Leclerc Open End Bench
• Sectional Warp Beam
• Double Warp Beam
• Flying Shuttle Beater

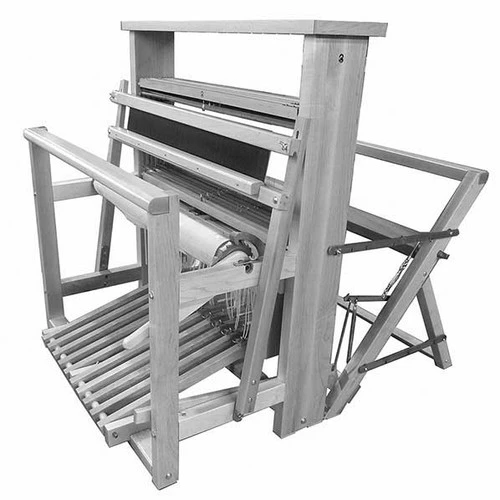

8 Harness model shown in photo.
